Protēa™ ne series dsp matrix processors
Standard ne DSP units are analog line input/output format of ne4400 (4×4), ne4800 (4×8), and ne8800 (8×8) with four option bays supporting network audio, AES3, and mic input options. Processing blocks include either a 4×4, 4×8 or 8×8 matrix mixer, a full array of graphic, parametric and all pass equalization, crossover filters including 8th-order Butterworth, Bessel, Linkwitz-Riley and notched Linkwitz-Riley.
No special outboard control units are needed. Connecting and controlling an ne audio processor for networked systems is simplified and call-back free.
| Model | I/O | Description |
| ne4400 | 4 x 4 | base 4 x 4 Protēa DSP system processor |
| ne4400m | 4 x 4 | ne4400+4-ch mic inputs |
| ne4400ms | 4 x 4 | ne4400 + 4-ch mic inputs + 4-chan AES3 outputs |
| ne4400ds | 4 x 4 | ne4400 + 4-ch AES3 inputs + 4-chan AES3 outputs |
| ne4400d | 4 x 4 | ne4400 + 4-ch AES3 inputs |
| ne4400s | 4 x 4 | ne4400 + 4-chan AES3 outputs |

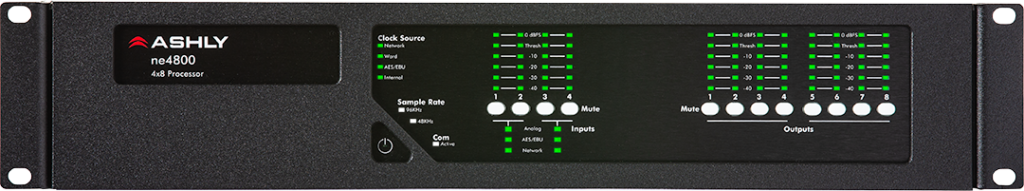

| ne4800 | 4 x 8 | base 4 x 8 Protēa DSP system processor |
| ne4800m | 4 x 8 | ne4400+4-ch mic inputs |
| ne4800ms | 4 x 8 | ne4800 + 4-ch mic inputs + 8-chan AES3 outputs |
| ne4800ds | 4 x 8 | ne4800 + 4-ch AES3 inputs + 8-chan AES3 outputs |
| ne4800d | 4 x 8 | ne4800 + 4-ch AES3 inputs |
| ne4800s | 4 x 8 | ne4800 + 8-chan AES3 outputs |
| ne8800 | 8 x 8 | base 8 x 8 Protēa DSP system processor |
| ne8800m | 8 x 8 | ne8800+4-ch mic inputs + 4-ch mic input card |
| ne8800mm | 8 x 8 | ne8800+4-ch mic inputs + two 4-ch mic input cards |
| ne8800ms | 8 x 8 | ne8800 + 4-ch mic inputs + 8-chan AES3 outputs |
| ne8800ds | 8 x 8 | ne8800 + 8-ch AES3 inputs + 8-chan AES3 outputs |
| ne8800d | 8 x8 | ne8800 + 8-ch AES3 inputs only |
| ne8800s | 8 x 8 | ne8800 + 8-ch AES3 Outputs only |
