Control your audio system from any location with our Network Remotes.

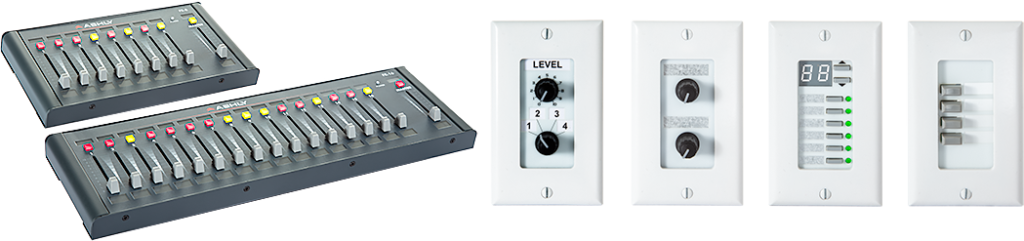

The FR-16 (16-channel) and FR-8 (8 channel) Network Remote Faders are a great choice for facilities that use amateur operators for occasional live performances. Mix and match network remotes in a single installation via a standard Cat-5 cable.

Each slider can be programmed to allow the amount of volume control you deem appropriate for the amateur operator. The LED button at the top of each slider can be programmed as a “Mute” or A/B Source select. The FR’s can be used as either tabletop or wall-mount mixers. An optional rack-mount kit is available.

The neWR-5 is the Network version of our popular WR-5 decora wall remote. It features six programmable buttons and up/down cursor. The buttons can be programmed as source select, zone select or to trigger presets. The up/down cursor is typically used as a volume control with software defined volume range.

FR-16 & FR-8
■ IEEE 802.3af power-over-Ethernet (PoE, Class 2)
■ Automatic IP addressing
■ Assignable fader scaling
■ Mute/unmute buttons with signal or A/B input source select option
■ Assignable signal level LED breakpoints
■ Communication failure indicator
■ User-defined labels per channel
■ Panel lock-out contact closure
■ Use along with neWR-5 wall remote
■ Wall mount with or without standard North American wall boxes or portable tabletop use

RD-8C
■ Connects via XLR serial data connector
■ 8 channel faders
■ One master fader
■ On/Off button on each channel with green LED status indicators
■ For use with a serial data connector on Ethernet-based Ashly ne signal processors, nXp amplifiers, ne amplifiers with DSP capabilities, and Pēma amplifiers

RW-8C
■ Electronically the same as the RD-8C but mounts as a wall plate into a standard 4-gang electrical box and uses a Euroblock connector.
■ 8 channel faders
■ One master fader
■ On/Off button on each channel with green LED status indicators
■ For use with a serial data connector on Ethernet-based Ashly ne signal processors, nXp amplifiers, ne amplifiers with DSP capabilities, and Pēma amplifiers
